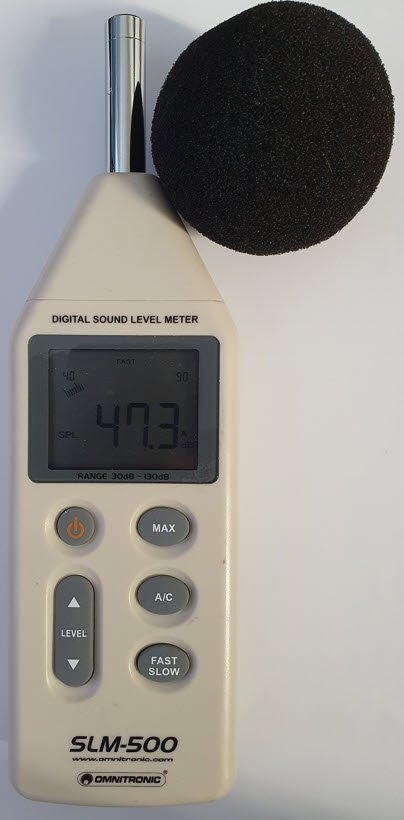

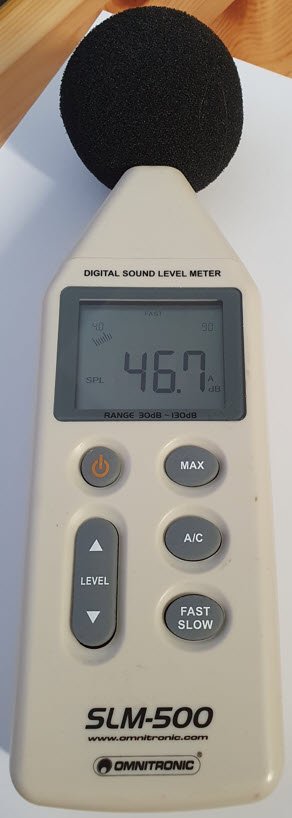

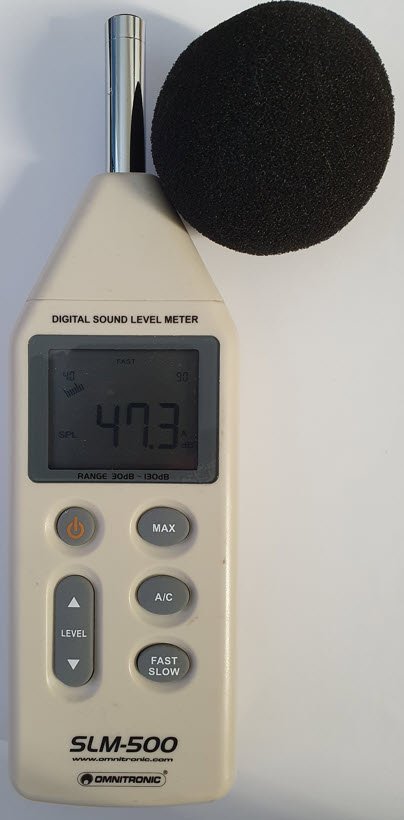

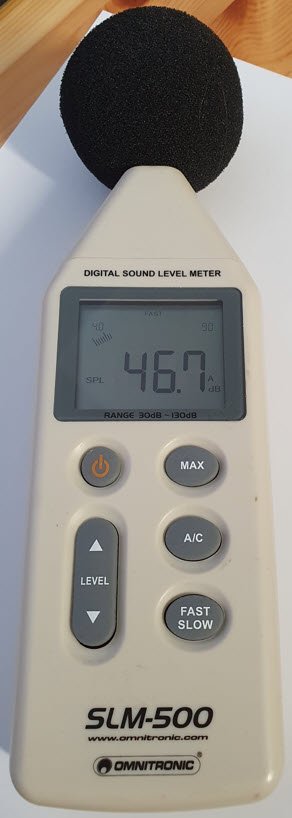

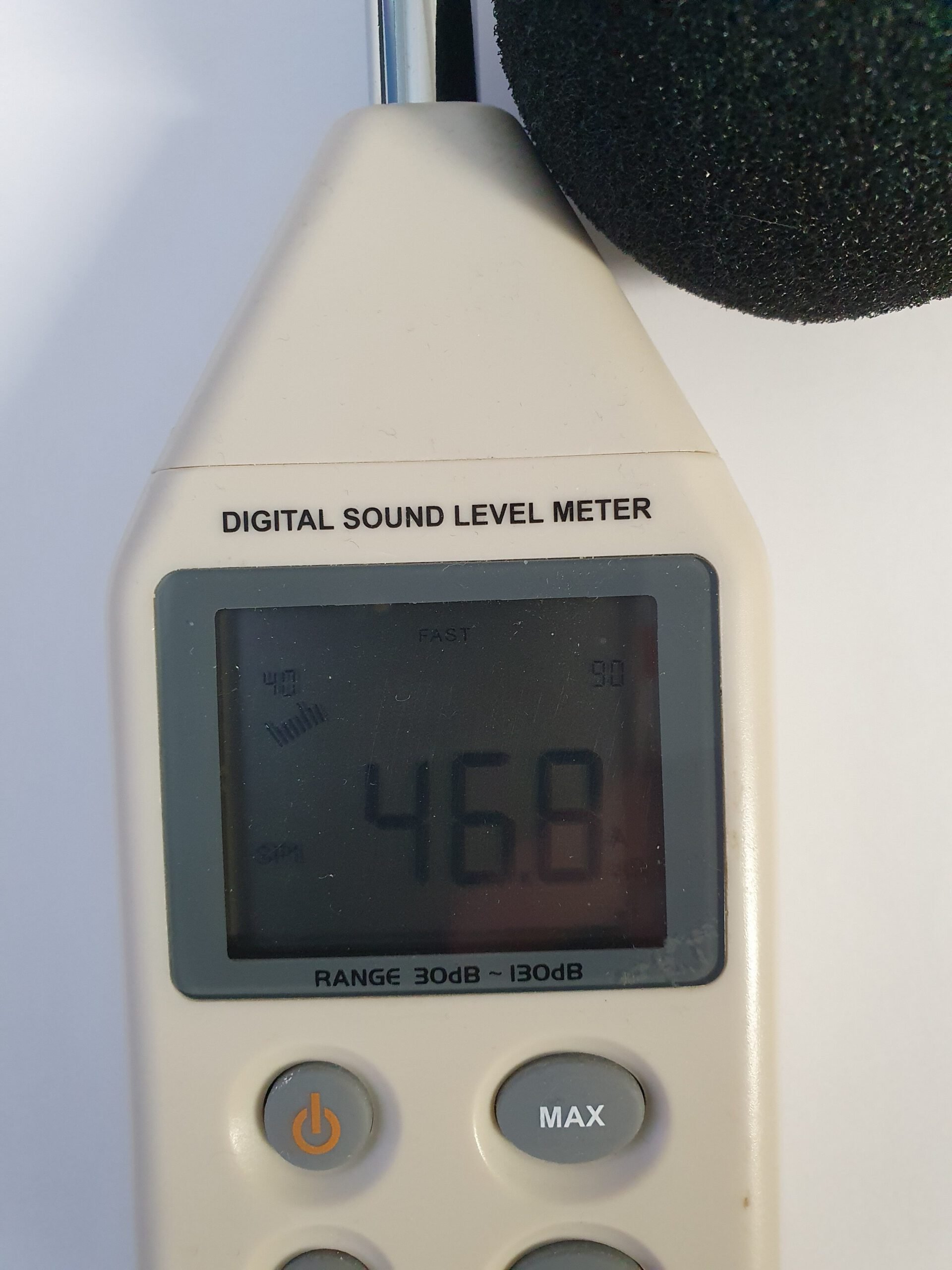

SLM-500 (dB meter)
The SLM-500 is a digital sound level meter from Omnitronic with A and C weighting.
Specifications
- Electret condenser microphone cartridge
- Measuring range from 30-130 dB
- Max Hold function
- A and C weighting
- Slow and fast measuring mode

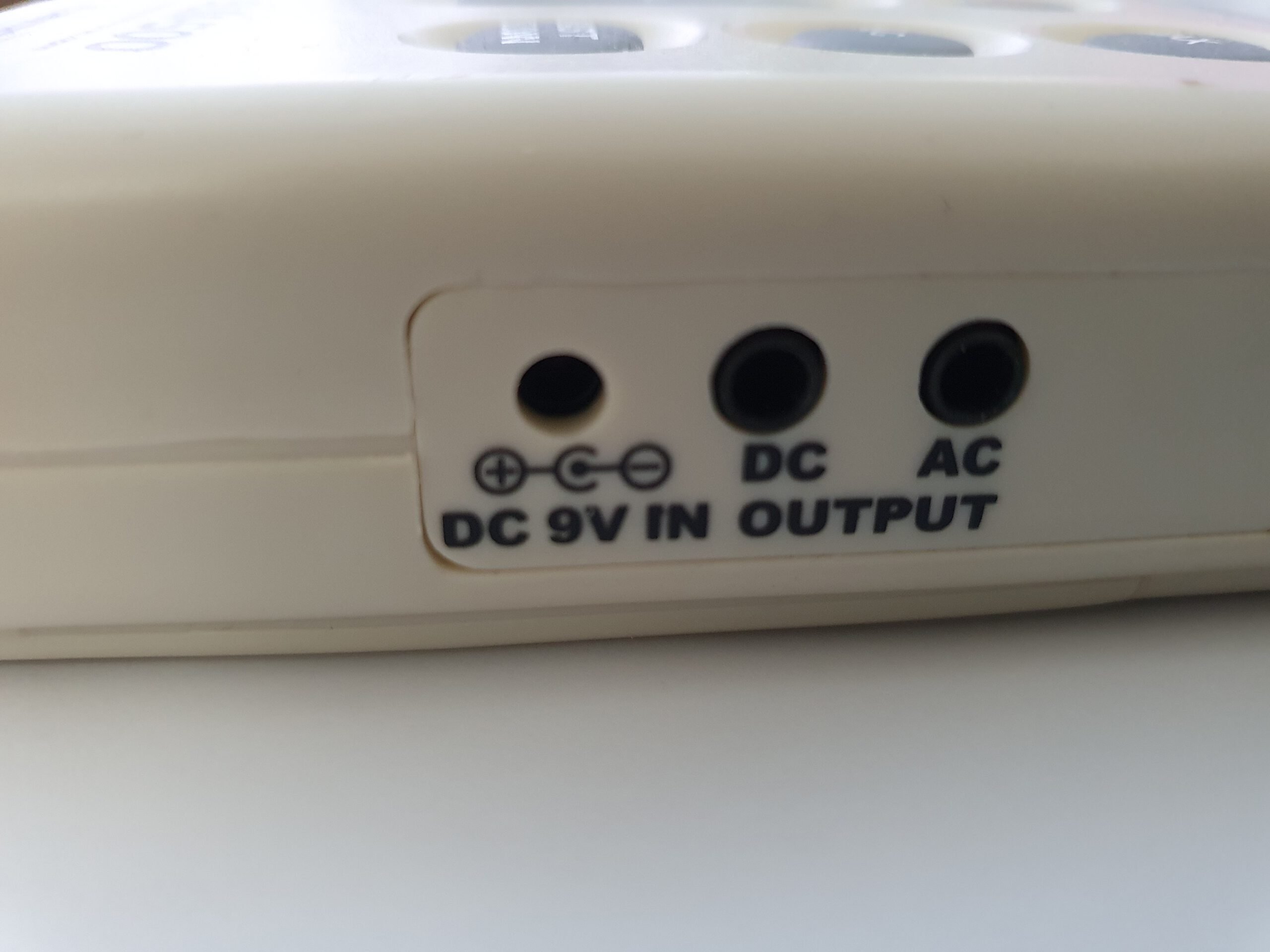

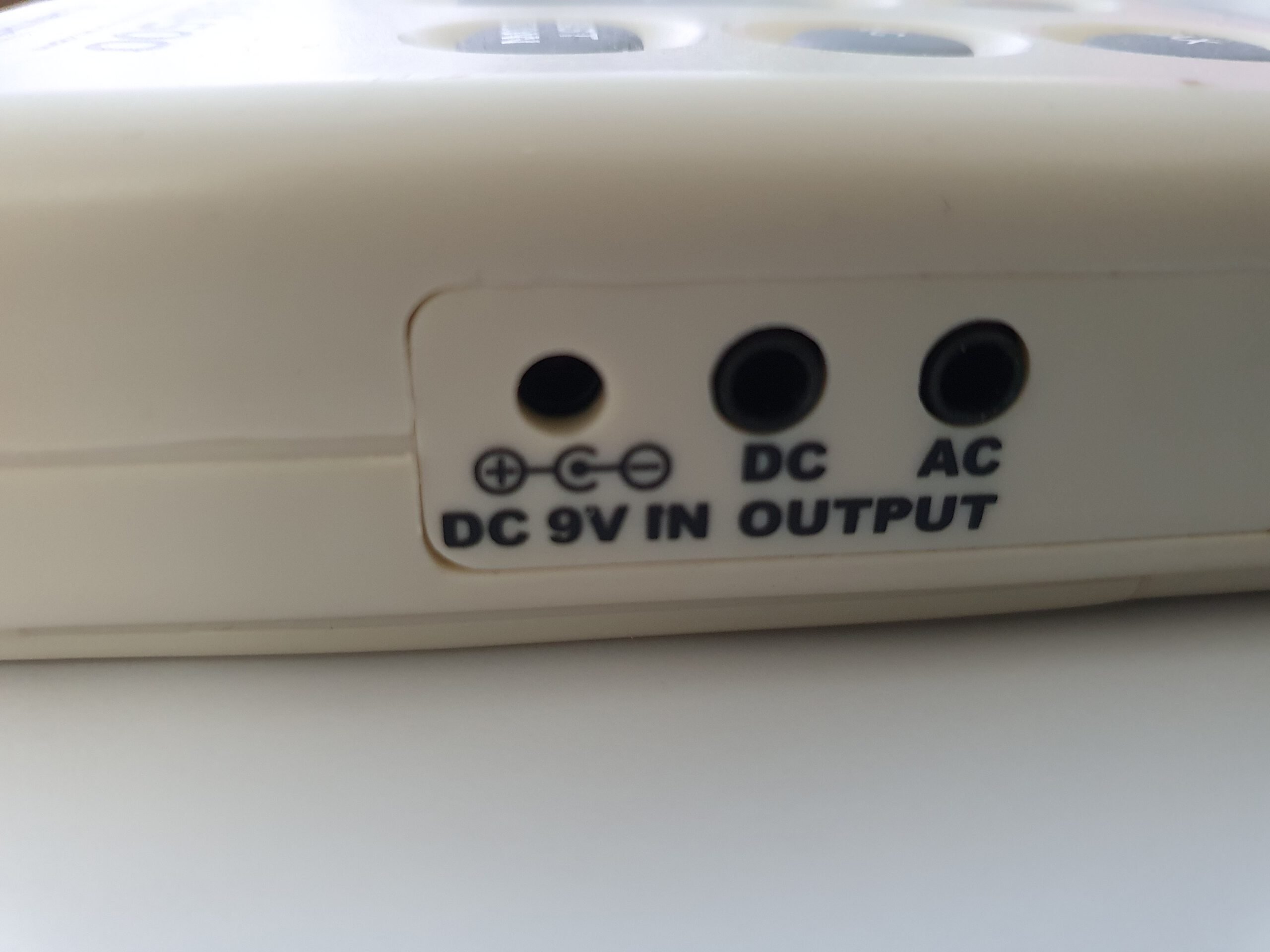

- Additional outputs for AC and DC current via 3.5 mm jack (1/8)
- Power supply: 6 V AC/DC
- via power unit: max. 9 V DC, 100 mA
- via battery: 4 x 1.5 V (type AA)
- Battery life: approx. 20 hrs.
- Measuring ranges: 30-80 dB, 40-90 dB, 50-100 dB, 60-110 dB, 70-120 dB, 80-130 dB, 30-130 dB
- Accuracy: ±1.5 dB @ 94 dB, 1kHz
- Frequency range: 31.5 Hz – 8.5 kHz
- Level weighting: A or C
- Microphone: electret condenser microphone
- AC output: 0.707 V RMS
- Output impedance: 600 ohms
- DC output: 10 mV
- Output impedance: 100 ohms
- Dimensions (L x W x H): 145 x 110 x 60 mm
- Weight: 0.6 kg
